Conversion Process - Electrical - Low voltage rewire.....

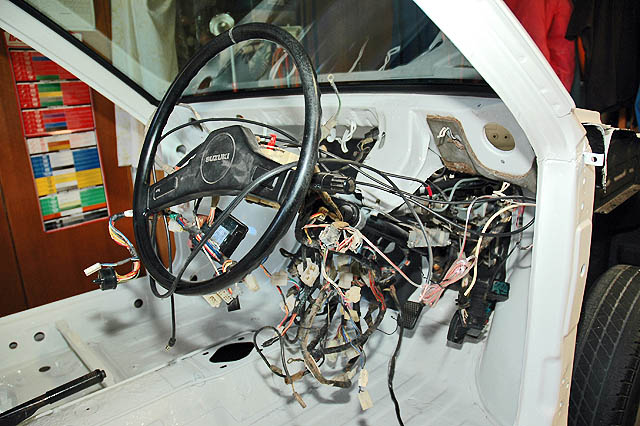

Next step is to cut open all the wiring looms and remove the unnecessary wire left over  from the ICE age

 About 30 % of the copper can be removed but for this project about the same amount will be added to support the conversion and a few little extras....

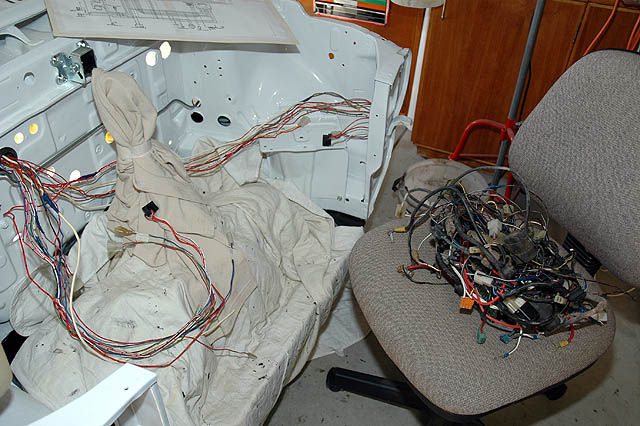

Surplus wiring on chair - Doesn't leave much....

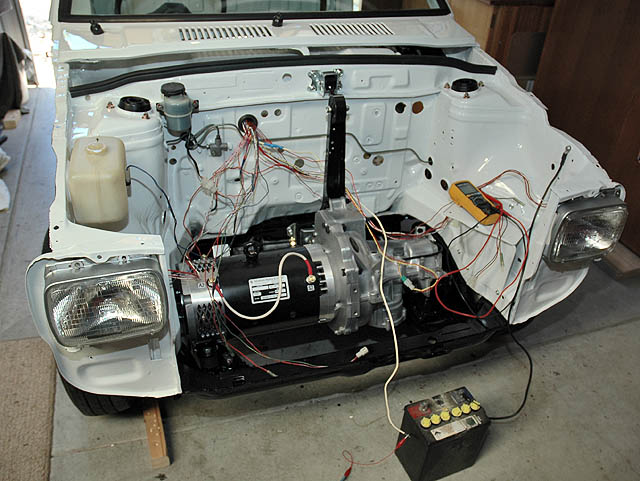

The required wiring being checked out before re-looming.....

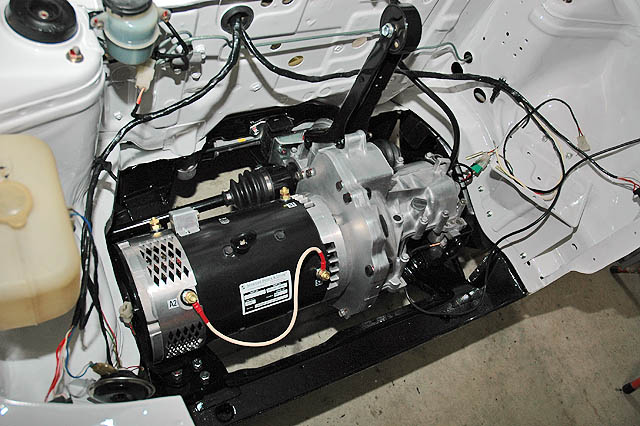

All back in place and ready for the high voltage/high current wiring plus the associated control cabling
