Conversion Process - Electrical - Adding the new stuff .....

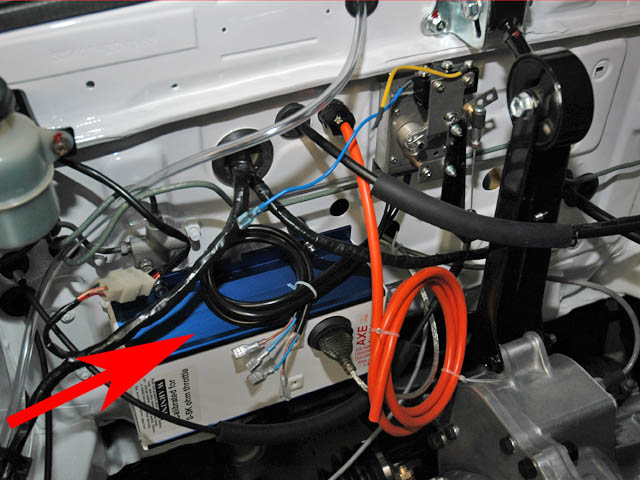

AXE controller test mounted.....

Now I need to design a suitable heatsink with an absolute minimum surface area of 144 sq inches

For our hot summer road conditions in Adelaide I will add as much additional surface area as possible

I have decided not to use fan assisted cooling for this project

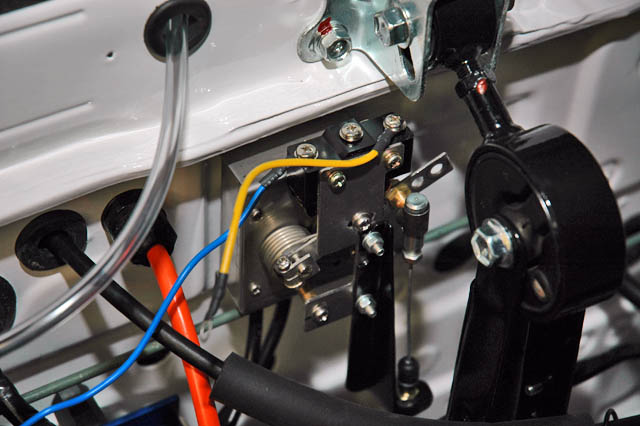

Curtis PB-6 pot box (equivalent to the old throttle control) now installed and calibrated

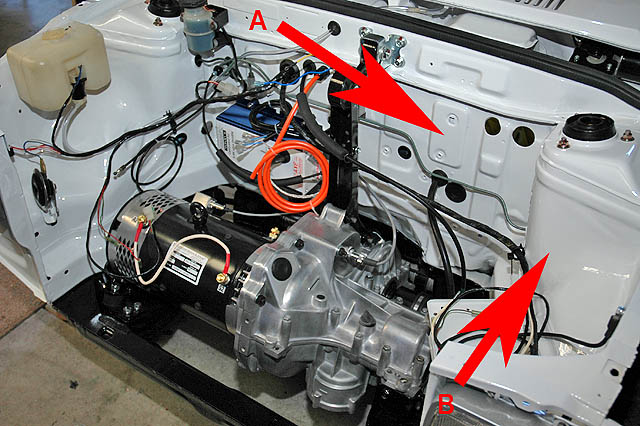

A - This area will accommodate the new high current/high voltage components

B - This area is reserved for the DC to DC converter
