Conversion Process - Electrical - Wiring diagram - Tidying some loose ends - page 2.....

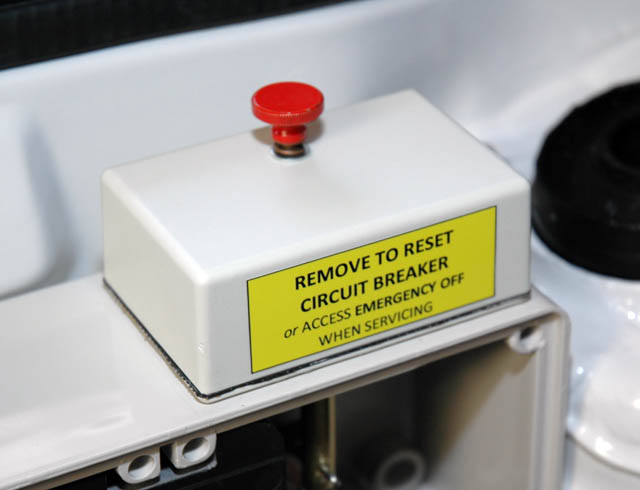

Smaller IP65 box with waterproof seal covering Emergency Off - Reset knob

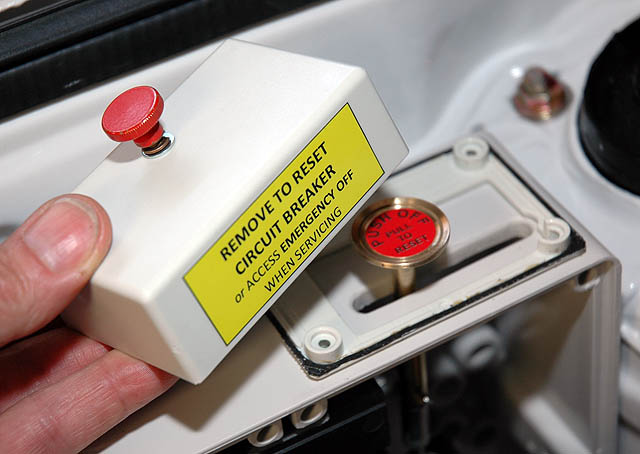

Removing the cover.....

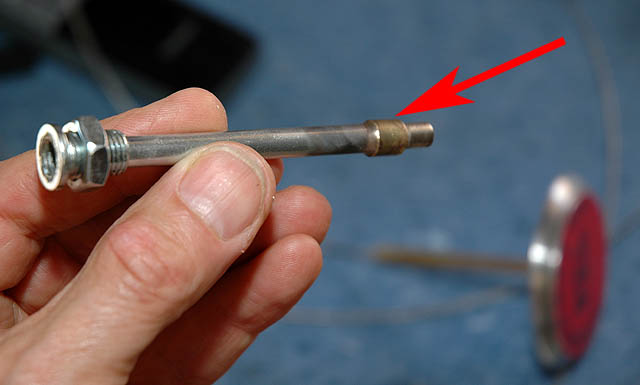

This is the modified choke cable fitting.....
End cut off and standard bike cable end cap silver soldered on to tube

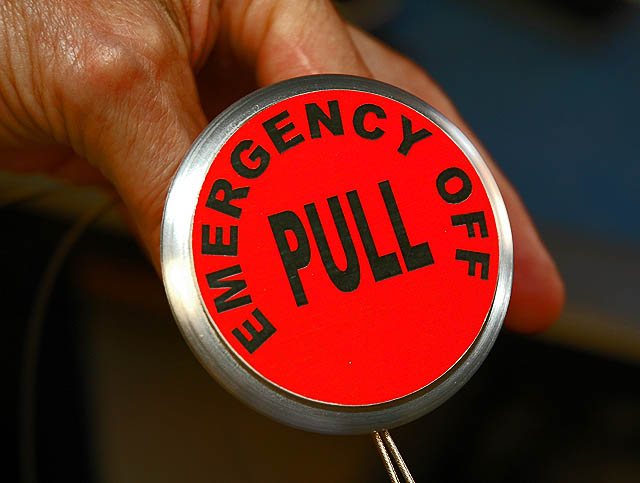

And the 50mm "Big Red" emergency off knob.....

This will mount in or under the dash somewhere
