Conversion Process - Mechanical - Motor Coupler - Page 4

Coupler cleaned up and ready to be balanced

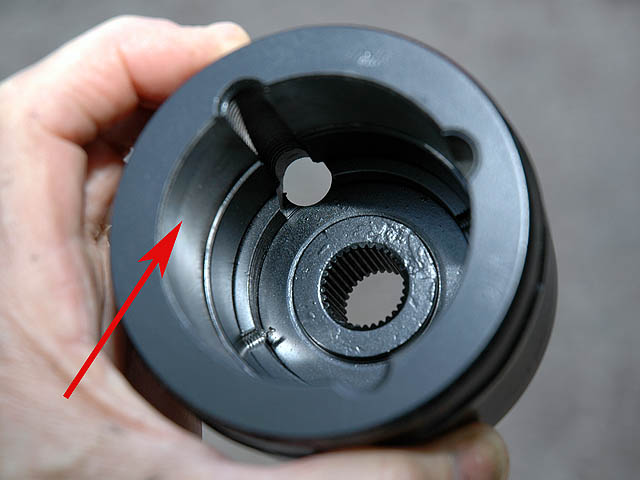

Taper lock bush fits as arrow shows.....

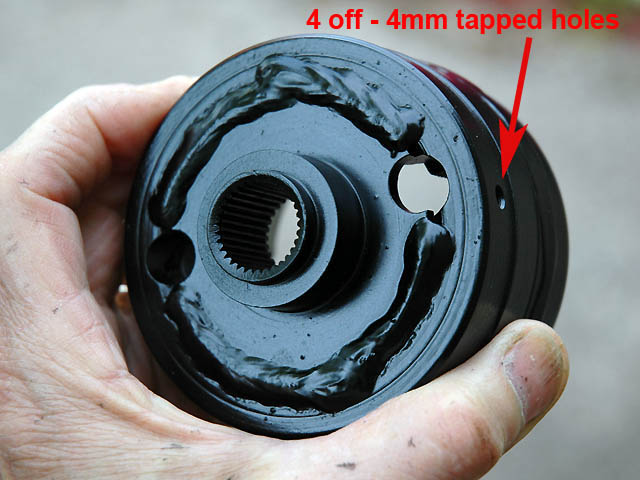

Small 4mm tapped holes (4 off) to hold magnets for the "Hall Effect" speed sensor
