Preparing the Mighty Boy - More on weather and airflow shields = Page 2.....

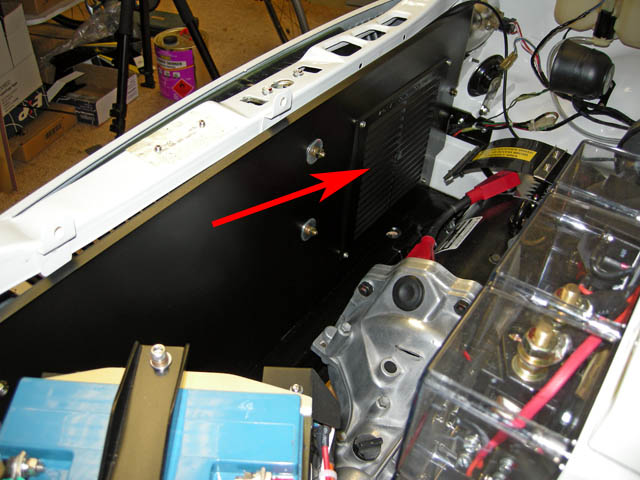

Here is the finished panel....
(The red arrow points to the grill/filter vent insert)

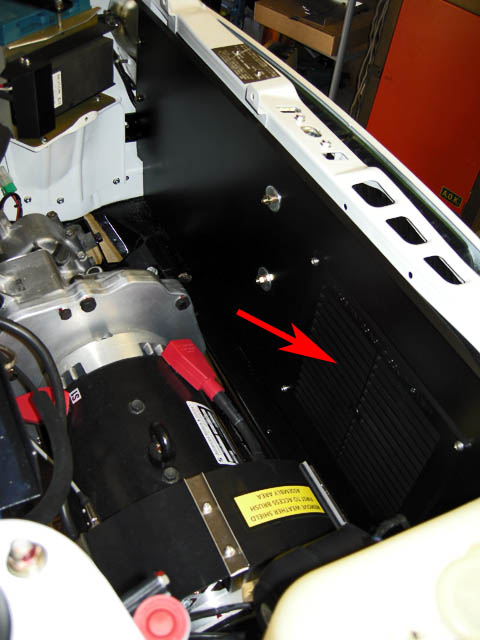

Another view....

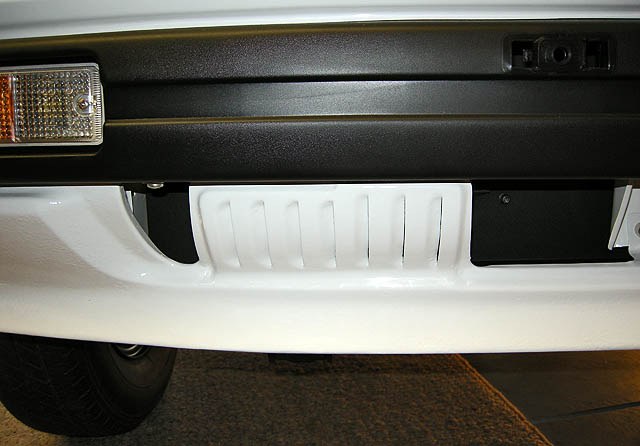

This original louvered panel is located just in front of the new vent.....
(Not good planning just lucky)

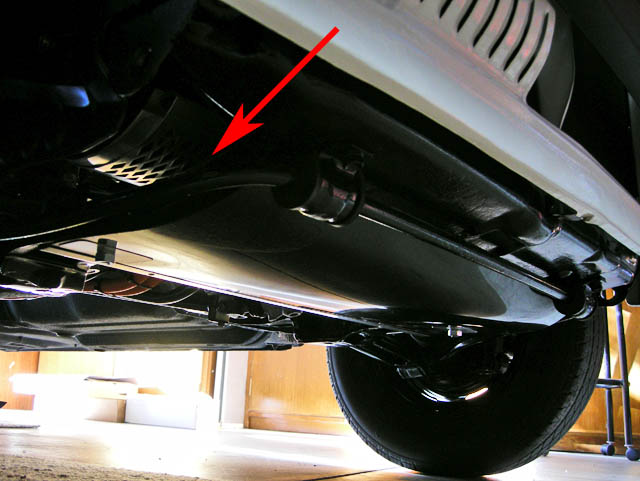

The completed "Belly" pan fitted
This side view shows the distance from the motor - thus maintaining good airflow.....
This completes the "Preparing the Mighty Boy" section
