Conversion Process - Mechanical - Final motor installation....

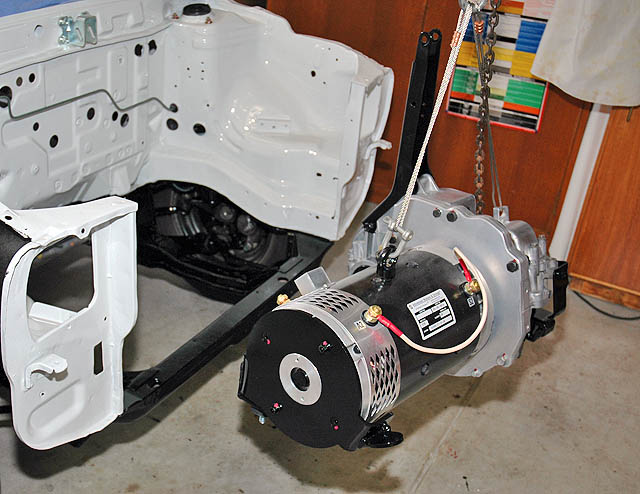

End plate/mount fitted and ready to lift into motor bay....

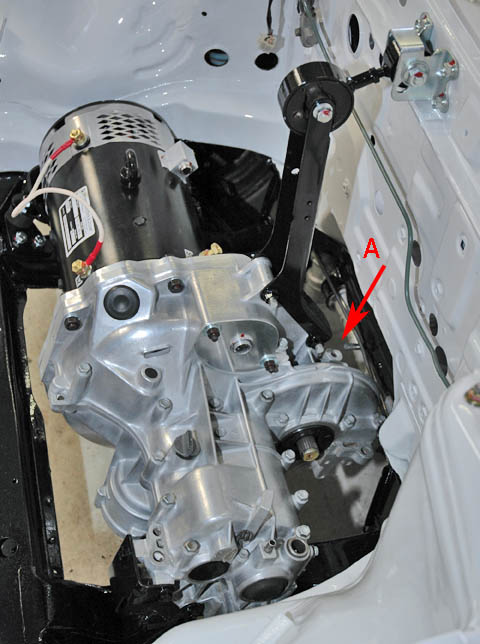

The finished mounting job.....

The original central "anti-rotational" mount and gearbox mount retained as standard.....

A- Centre mount fits here but not shown

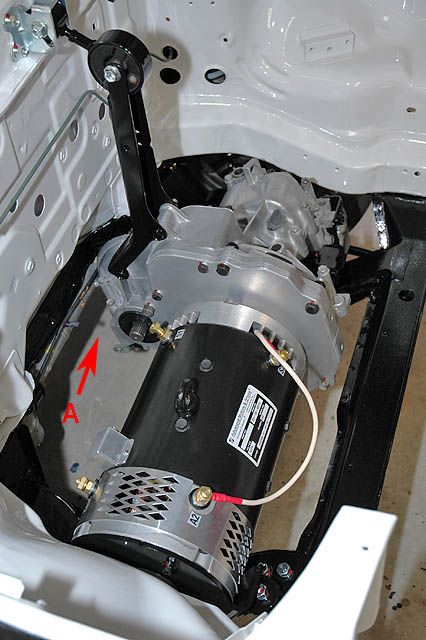

View from the other side....

A- Centre mount fits here but not shown

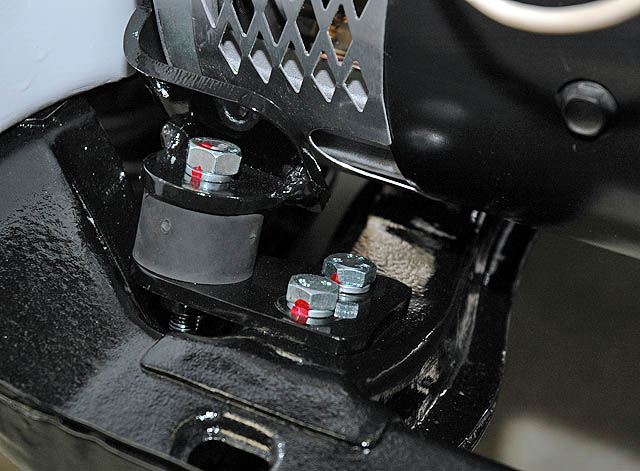

Motor mounts on the new front plate used the existing holes in the sub chassis rails.....
