1970's Electric Vehicle Project at Flinders University - The background......
The following information has been supplied courtesy of Flinders University. The information remains copyright to Flinders University and as such No reproduction is allowed without written permission from the University.
In the 1970's and early 1980's, a number of alternative energy studies took place within Physical Sciences at Flinders University, Adelaide, South Australia. One of these projects, largely undertaken by a group of electronic and mechanical technicians, was the Flinders University Electric Vehicle Project. The project was headed up by a very enthusiastic Darryl Whitford and the project cars proudly carried the name "Investigator" named after one of James Cook's ships. Other key members of the group were Kevyn Rush, Viv Rush, Robin Jongebloed, Peter Harris and Kate Mackenzie. At that time I was employed as an electronics technician in the main workshop in Physical Sciences and very such enjoyed any involvement with the project and the lengthy technical discussions that took place in the tearoom.

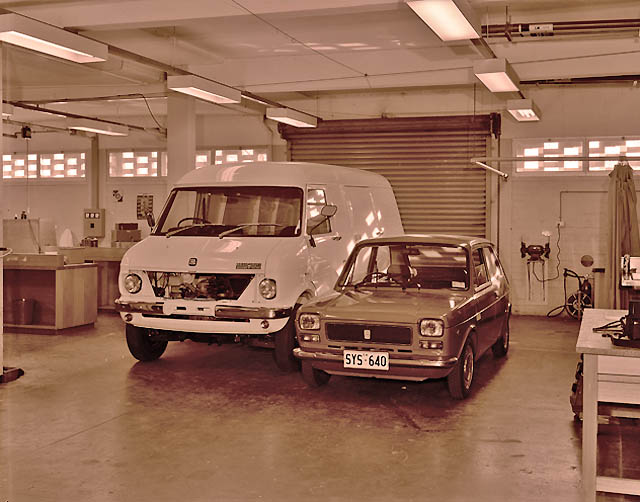

The workshop area with the two commercial vehicles used in the later project
Bedford Van on the left and the smaller Fiat 127 on the right.....

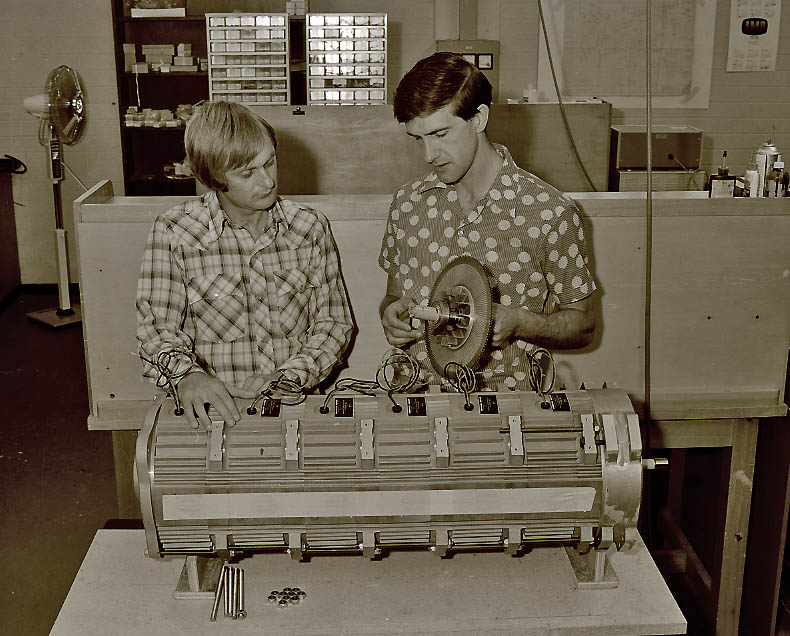

Robin Jongebloed and Darryl Whitford with the power unit from the Bedford Van
The "Printed Circuit" motors were modular in design and based on 5kW building blocks. The above assembly shows 6 of these modules series together to form the 30kW unit that was used to power the Bedford deliver van project.

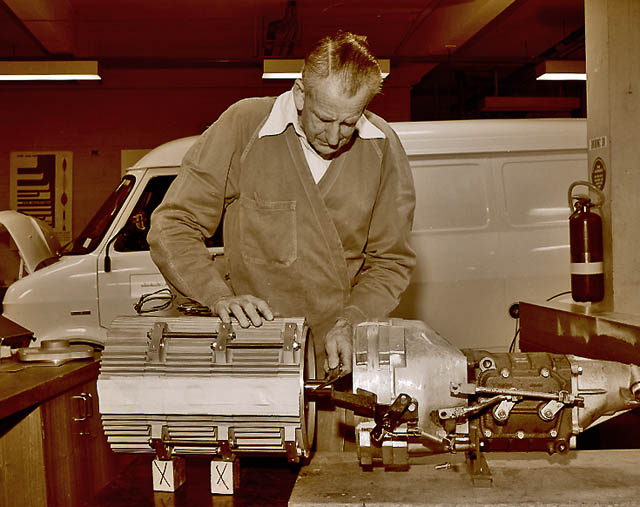

Kevyn Rush assembling some of the modular power units

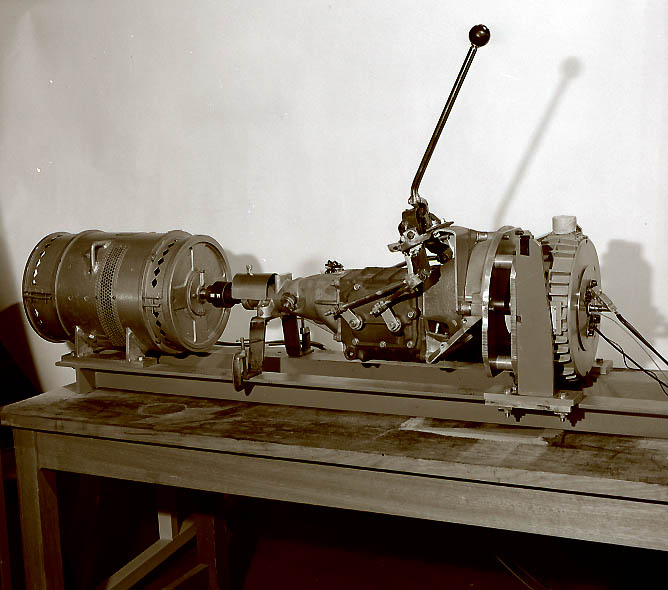

A number of home grown test beds were used in the development and testing of the motors and associated control circuitry

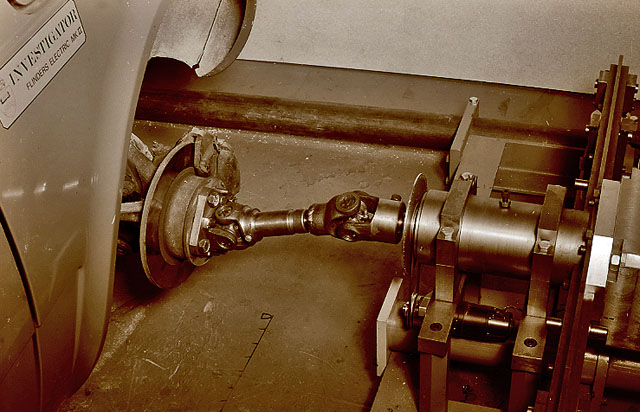

Early computer Dyno testing of the Fiat 127 MkII

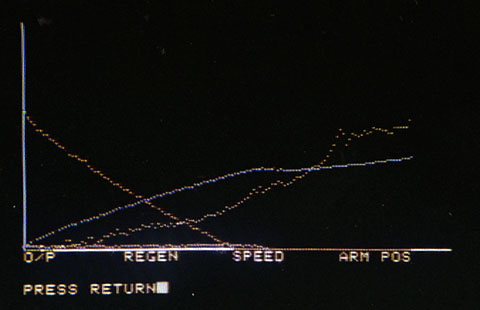

Output data sample....
